DESCRIPTION
TS170 is a Panel-powered tracker controller developed by SmarTracker. It is equipped with a BMS intelligent charge and discharge management module independently developed by SmarTracker. It intelligently manages the charge and discharge of the battery under different ambient temperatures, charges the battery with constant current and voltage, and intelligently protects the battery. Prevent the battery from being overcharged or over-discharged, improve the life and efficiency of the battery, and further enhance the stability and reliability of the control system.
TS170 is a highly intelligent tracking controller. According to the local longitude, latitude, and time, the program automatically calculates the sun's trajectory at any time and the azimuth and altitude of the location. In the automatic tracking mode, the system will automatically issue command tracking commands to control the operation of electric actuators according to the current position of the sun, so that photovoltaic modules can track the sun in real time and increase power generation.
The product has intelligent functions such as wireless one-key upgrade, wireless ad hoc network, anti-shadow tracking, wind and snow protection, over-current and over-temperature protection, and is equipped with SmarTracker NCU and SCADA to realize the system automatic working modes switch under different complex weather conditions, protecting the photovoltaic bracket in the case of strong wind, heavy rain, and heavy snow. The whole system does not require manual intervention and runs fully automatically.
SmarTracker specializes in providing a one-stop solution for photovoltaic tracking.
FEATURES
? The main panel-powered36V/60W.
?150W Driving Power/3Ah battery
? Built-in on-board BMS photovoltaic dedicated charge and discharge management system to provide product safety and battery life.
? Built-in tilt sensor module, no need for external connection.
? Complete protection functions: PWM soft start, angle limit protection, overcharge and overdischarge protection, over temperature protection, overload protection, electronic short circuit protection and anti-reverse connection protection.
? IP65 protection.
? Built-in temperature sensor, with high-precision temperature compensation.
? The parameter settings are saved after power-off, no need to repeat settings, convenient and simple.

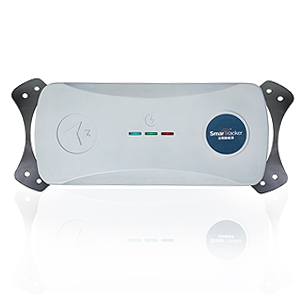

APPEARANCE OF FUNCTION
TRACKING CONTROLL SYSTEM SOLUTION DIAGRM
The flat single axis tracking bracket is a form of tracking bracket lay out from north to south and tracking from east to west. According to the astronomical algorithm, the controller (TCU) uses the motor to drive the bracket to track the sun in real time, maximizing the solar radiation on the surface of the photovoltaic module. In turn, increase power generation. The controller (TCU) is powered by DC36V from the battery panel directly, and the controller converts the voltage into DC24V through the circuit to control the motor for closed-loop control of the system.
TS170-1503:Panel-Power，150W Driving Power，DC36V~60V Power Supply，3Ah
------------------------------------------------------------------------------------------------------------------
TS170-1506:Panel-Power，150W Driving Power，DC36V~60V Power Supply，6Ah
------------------------------------------------------------------------------------------------------------------
TS170-3003:Panel-Power，150W Driving Power，DC36V~60V Power Supply，3Ah
------------------------------------------------------------------------------------------------------------------
TS170-3006:Panel-Power，150W Driving Power，DC36V~60V Power Supply，6Ah
